10KW 48Vdc Hybrid Inverter 110/240Vac Split Phase Supports 6 Units in Parallel
10KW 48Vdc Hybrid Inverter 110/240Vac Split Phase Supports 6 Units in Parallel
POW-SUNSMART 10KP
10000
110/220 (±5% Ajustable)
48
Single Phase / Split Phase (110/240Vac)
125-425 (PV Array Open Circuit Voltage: 500V)
11000
LiFePO4 Batteries, AGM Batteries, Lithium Batteries, Flooded Batteries, Sealed Lead Acid Batteries, Gel Batteries,User Mode
6
details
Dual 200Amp MPPT Solar Charge Controllers for Higher Power
Pow-Sunsmart-10KP features 2 built-in 200Amp MPPT solar charge controllers, each with 99.9% efficiency and 22A current(Max. PV Input) in a single circuit. With support for 2 solar inputs and simultaneous tracking of 2 solar maximum power charging/carrying capacity functions, it maximizes your solar power efficiency.

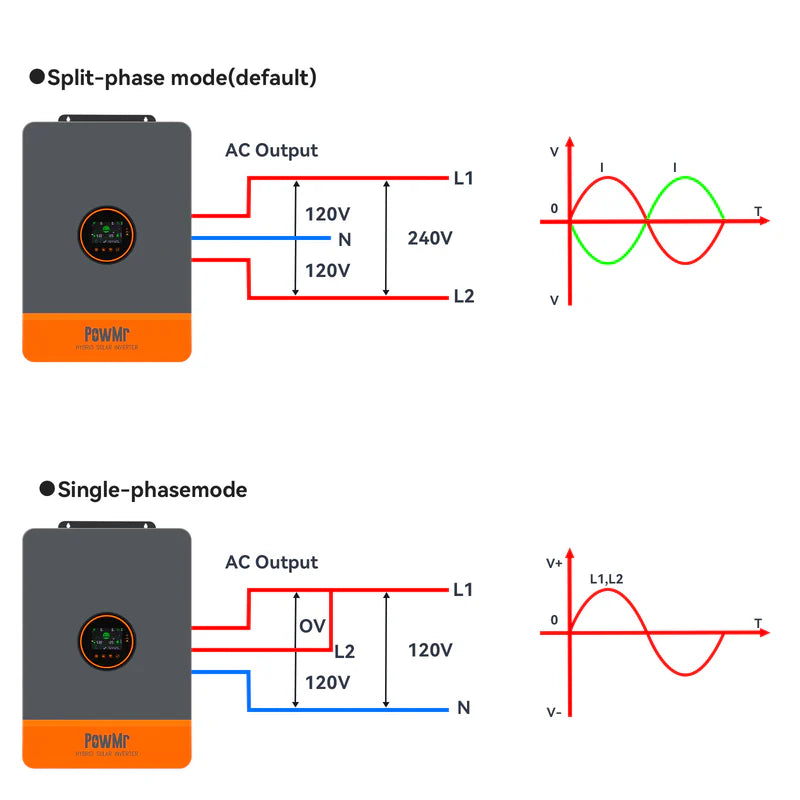

10kW Pure Sine Wave Split Phase Inverter
This 110V/240 Split Phase Inverter offers 4 voltage levels per phase: 100Vac, 105Vac, 110Vac, and 120Vac. It supports CAN, USB, and RS485 communication for enhanced connectivity. Experience reliable and efficient power conversion with this versatile inverter, perfect for a variety of applications.

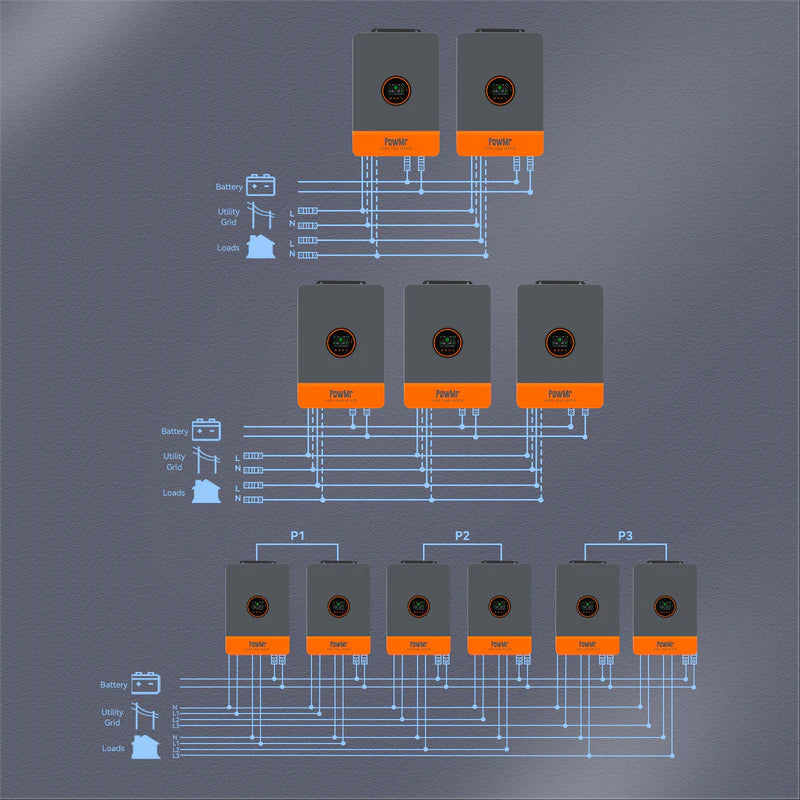

Support Up to 6 Units in Parallel Connection
The 10KW solar inverter charger allows connection of up to 6 units simultaneously. This configuration grants a total power output of up to 60000W, catering to various applications such as residential, office, commercial, and industrial use. With its dependable and efficient design, as well as its effortless expandability, this solar inverter charger is an ideal choice for extensive solar systems.
Flexible Charging & Output Modes
Versatile solar inverter that comes equipped with four charging modes (Solar Only, Mains Priority, Solar Priority, Hybrid Charging) and 2 output modes(Utility Bypass and Inverter Output). Also, it features full system protection, including protection against short circuits, over/under voltage, overload, and backfill, among other features.

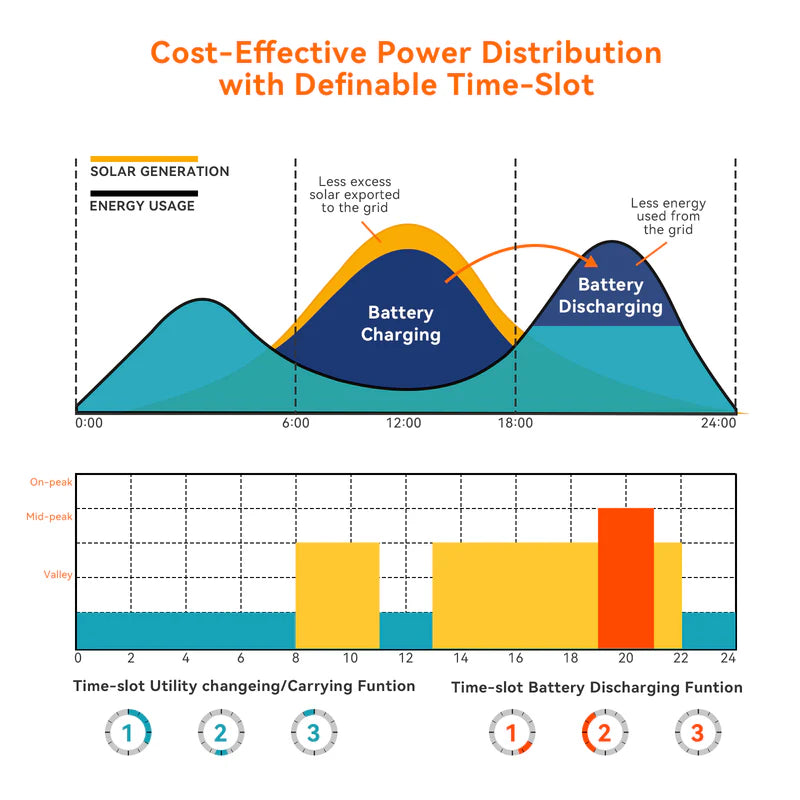

Peak Shaving & Valley Filling
With the definable time-solt, this inverter charger enables efficient peak and valley power conversion. Excess solar energy generated during the day is intelligently stored in the battery, ready for use by home appliances during the evening peak of electricity consumption. This not only ensures reliable electricity usage but also significantly reduces energy expenses. Zero battery discharge time enables inverter as UPS power supply.

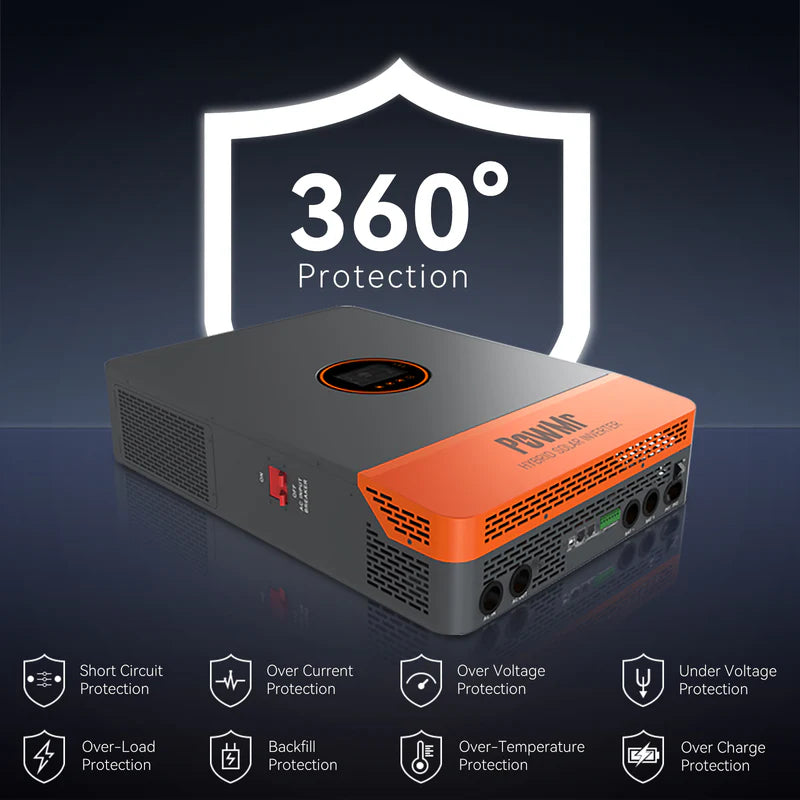

360° Protection
The 10KW 48Vdc 110/240Vac hybird inverter has complete short circuit protection, overcurrent protection, overvoltage and undervoltage protection, overload protection, recirculation protection, etc., making it very suitable for off-grid backup and self-use applications. Widely used in homes, cabins, campers, RVs, trailers, boats and more, and used as backup power when utilities are outage.
